NEW Energy efficient luminaires „SPL“.

Photometric solutions for lighting streets, highways, parking stations, railway platforms, pedestrian areas, parks, and bike paths and etc. Various types of power (up to 70W and various optical light distributions. Housing: high-pressure die-cast aluminum, painted. Recommended mounting height: 4 – 10 m.

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

Make enquiry

Product details

Type
SPL
Optics

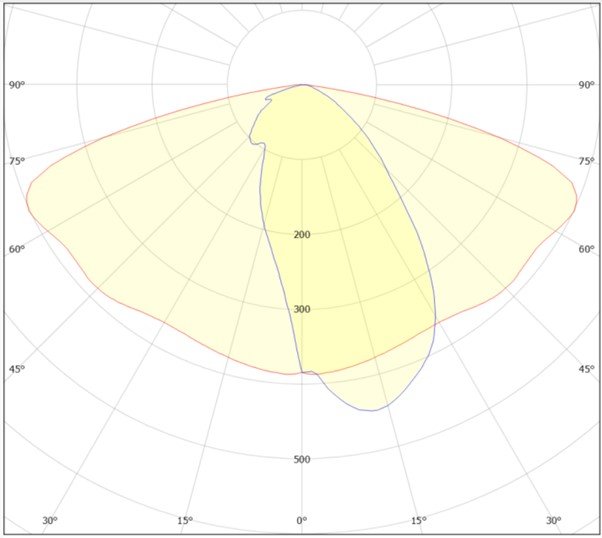

Asymmetric optics lens (PMMA)
Light source
Mid Power LED
Optical cover
Optical cover PMMA
Light color
2700 - 6500K
Color Rendering Index
Ra > 70
Material
Heat sink: Cast aluminum, painted
Power
From 20 W to 70 W
Color
Grey RAL 7015 or RAL7035
Efficacy
Up to 152 lm/W
Operating temperature
-40°C ≤ Ta ≤ +40°C
Life expectancy L/B
L70/B10 110000 hrs (Ts = 85°C)
Suitable for mains voltage peaks
(burst/surge), 6kV. 10kV optional.
Driver
180 – 264VAC, 176 – 280 VDC
Protection Classes
Class I, Class II
Resistance to mechanical impact
IK09
Interfaces
Optional
Installation
Adjustable bracket: angle -15° +15°, Ø 42- 60mm, (60-76 mm optional)
Maintenance
No internal cleaning required
Remarks
Luminaries are ready to install
Size
422 x 260 x 103 mm
Type
SPL
Optics
Asymmetric optics lens (PMMA)
Light source
Mid Power LED
Optical cover
Optical cover PMMA
Light color
2700 - 6500K
Color Rendering Index
Ra > 70
Material
Heat sink: Cast aluminum, painted
Power
From 20 W to 70 W
Color
Grey RAL 7015 or RAL7035
Efficacy
Up to 152 lm/W
Operating temperature
-40°C ≤ Ta ≤ +40°C
Life expectancy L/B
L70/B10 110000 hrs (Ts = 85°C)
Suitable for mains voltage peaks
(burst/surge), 6kV. 10kV optional.
Driver
180 – 264VAC, 176 – 280 VDC
Protection Classes
Class I, Class II
Resistance to mechanical impact
IK09
Interfaces
Optional
Installation
Adjustable bracket: angle -15° +15°, Ø 42- 60mm, (60-76 mm optional)
Maintenance
No internal cleaning required
Remarks
Luminaries are ready to install
Size
422 x 260 x 103 mm
More detailed information is under preparation

If you want to get more details about this product, please contact sales@enimlighting.com
